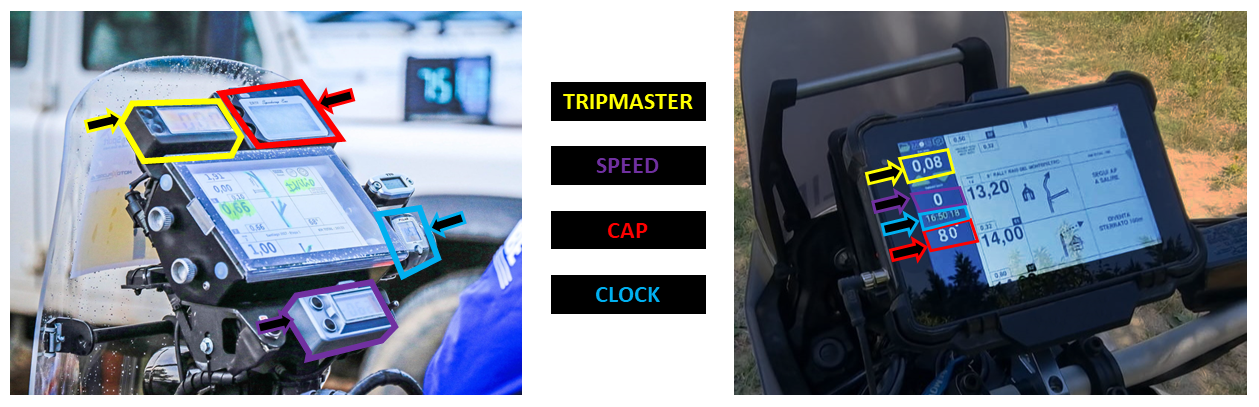

TRIPMASTER Bluetooth for tablets and smartphones

You can connect the wheel sensor to the JOYMAP which sends information about when and how much the wheel turns via Bluetooth to the apps MIO ROABOOK READER , SPEEDOX , TERRAPIRATA ( Android and iOS ), PISTE which allows the display of the Trip based on the wheel (therefore more precise than GPS).

HOW IT WORKS:

The JOYMAP is supplied with a multi-pole connector to which the wheel sensor can be connected via special wiring:

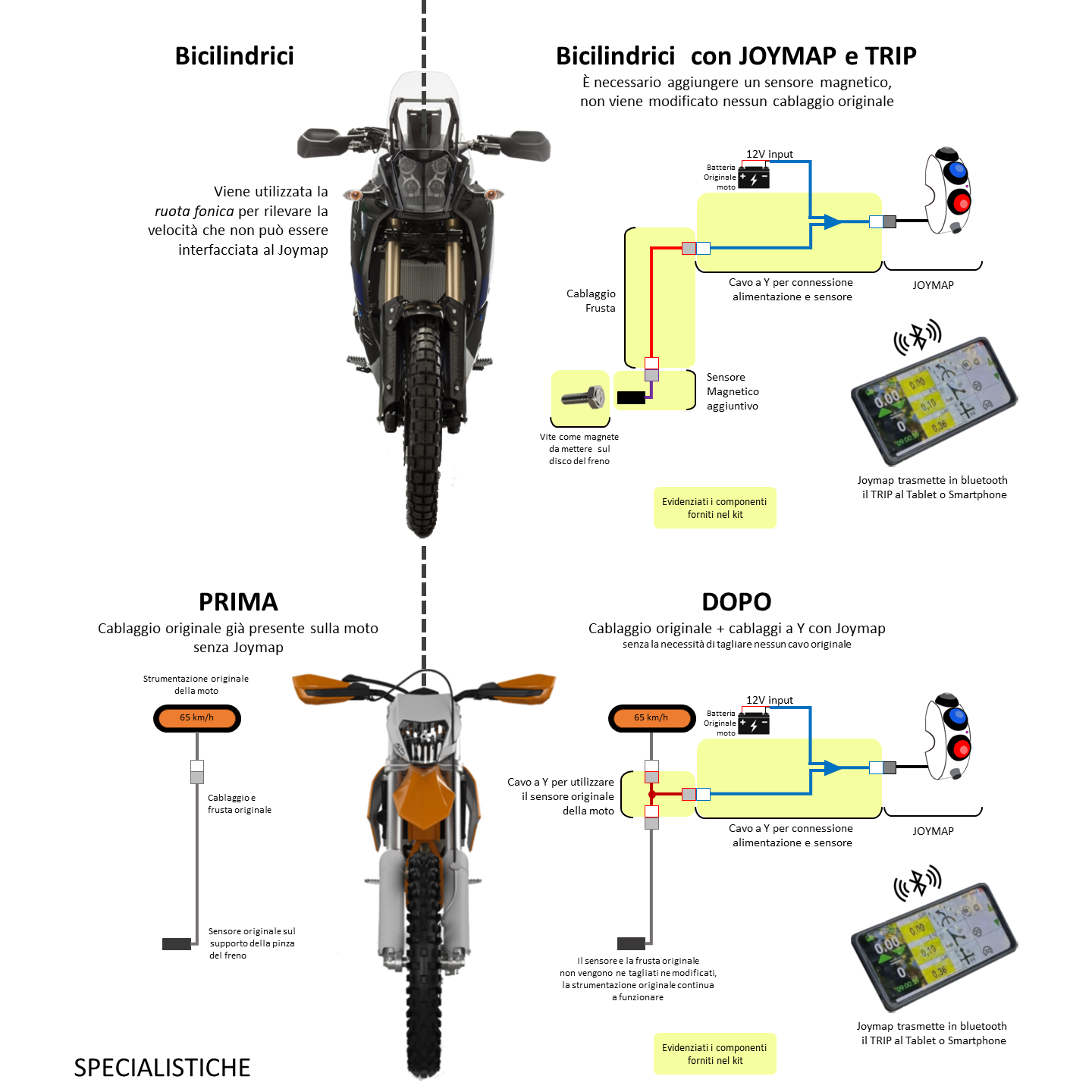

There are 2 different situations depending on the type of motorbike you own:

• Enduro specialist bikes (KTM EXC (and Husqvarna GasGas group), Beta)
• Twin-cylinder motorcycles (and non-specialist motorcycles, where there is not already a magnetic sensor to detect speed, therefore also included are Husqvarna 701, Kove 450, etc.)

For further details read HERE

What's provided:

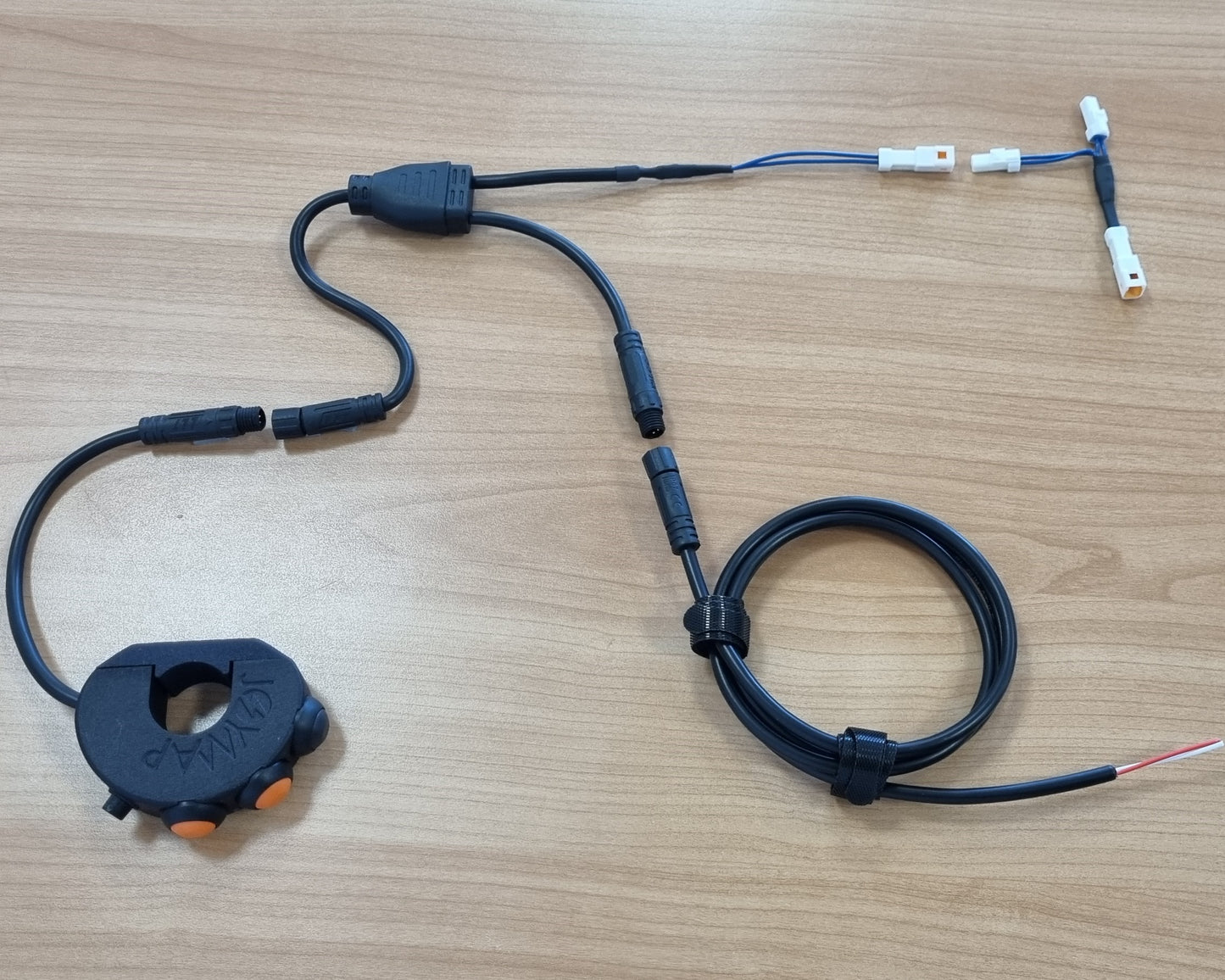

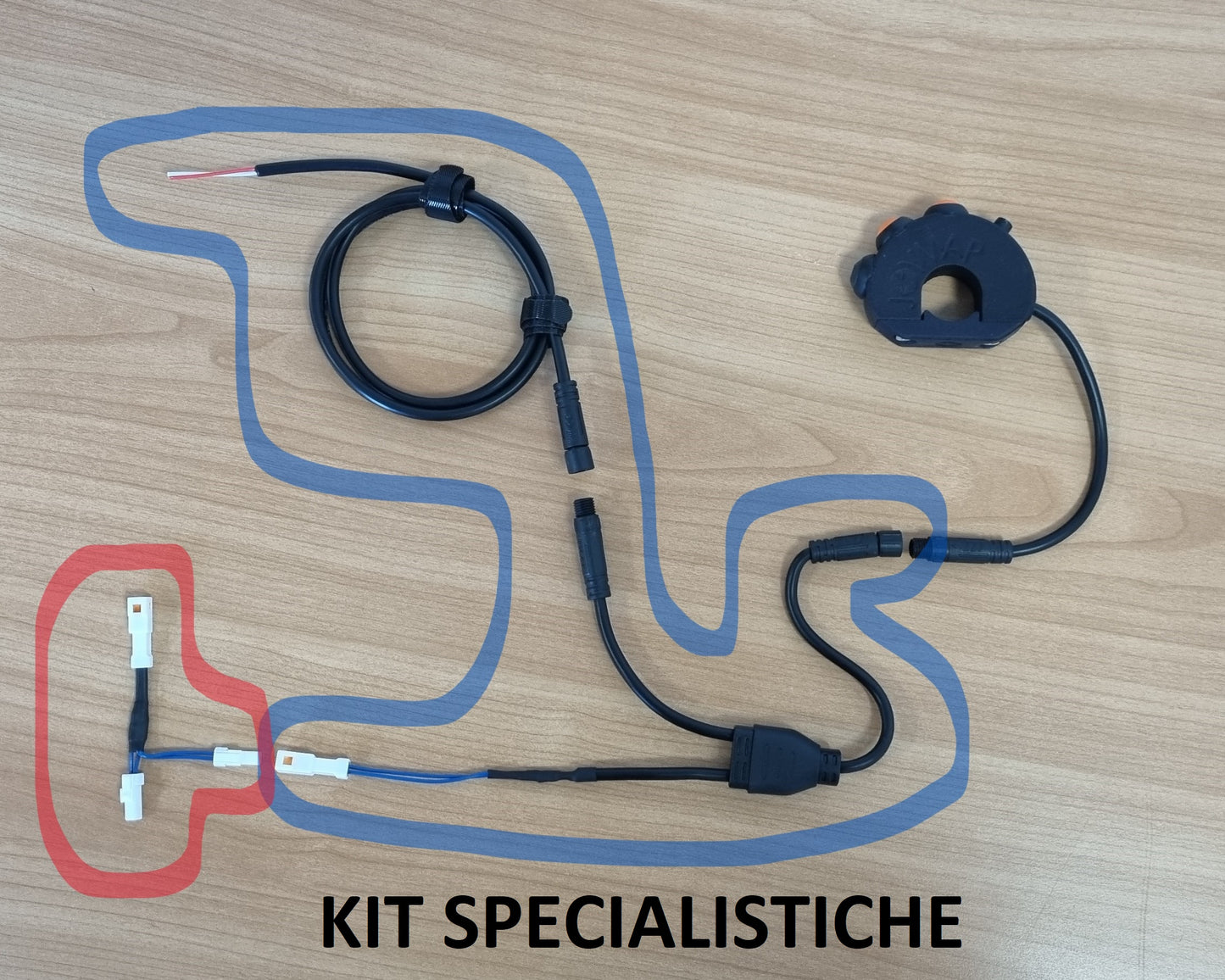

SPECIALIST KITS :
- Y-cable for connection with Joymap - Power supply and sensor (BLUE in photo)
- Y-cable that takes the signal from the original whip with the same original connectors as the bike (RED in the photo)

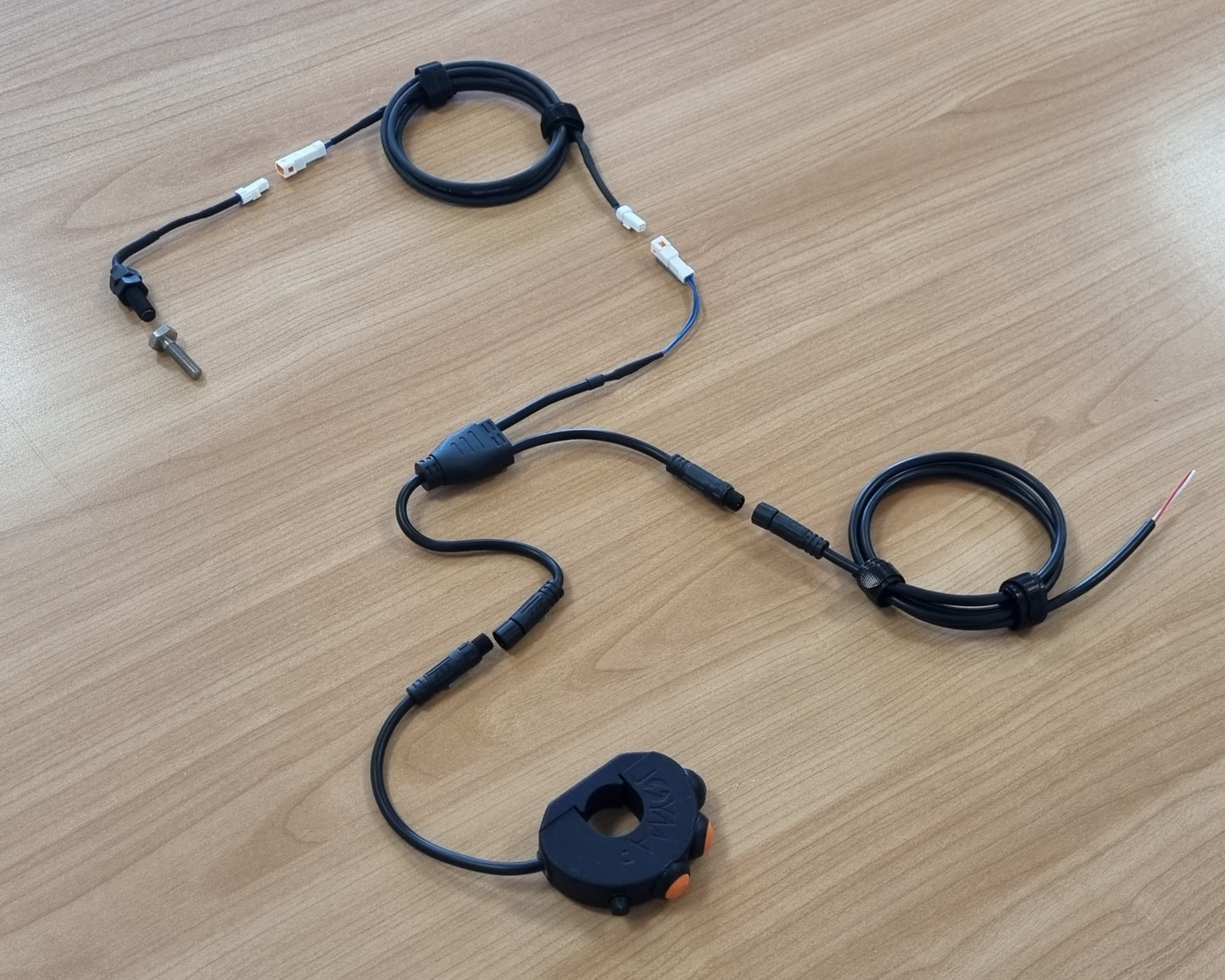

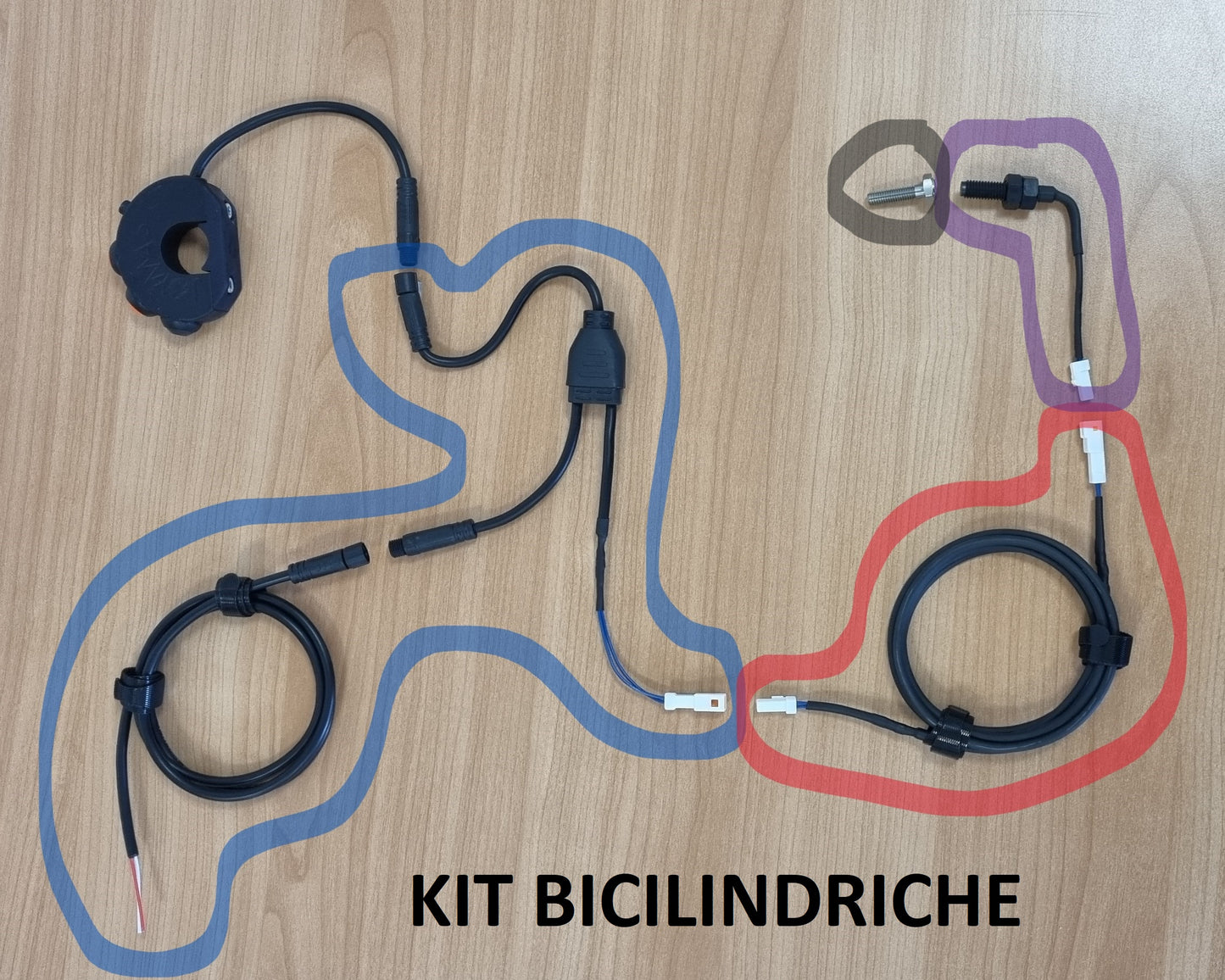

TWIN CYLINDER KIT
- Y-cable for connection with Joymap - Power supply and Sensor (BLUE in the photo)
- Cable (Red in the photo) to connect the sensor to the Y mentioned above, length 120cm
- M8 magnetic sensor with 10cm cable (Purple in photo)
- M6 magnetic screw to be replaced with one from the brake disc.

What is NOT provided
- Joymap ( the ORIGINAL and RACE )
- Power battery (not necessary, the motorbike's battery is used)
- Sensor support bracket

Compatible with JOYMAP ORIGINAL and JOYMAP RACE

In both cases, it is not necessary to cut any original motorcycle cables, replace connectors or create new ones.

Shipments in 24/48h
